Adjustable Membrane Nitrogen Generator For Medical And Chemistry
Product Description:
Polymer membrane material is the core material of this technology.
When pressure is applied, nitrogen can pass quickly, while another
gas is difficult to pass through the membrane.Membrane materials is a kind of hollow fibers with high surface
area to bring the high processing rates for high bolometric gas.
The membrane has the characterisitics of selective permeability.We use its selective nature of passing through the gas to separate
the gas.
The rate of permeation of each gas go through the polymeric membranes is determined by its solubility, and the rate of diffusion through the molecular free volume in
the membrane material. The high solubility gases in the nitrogen
membranes, and gases that are small in molecular size, permeate faster than larger, less
soluble gases.
Fast Gases and Slow Gases
"Fast" gases permeate through the nitrogen membrane wall more
readily than "slow" gases, thus separating the original gas mixture into two streams. The purity of
the desired streams can be adjusted by changing the operating conditions.
The ability of a nitrogen membranes to separate two gases is
determined by the ratio of permeabilities of the two gases. The higher the selectivity, the
more efficient the separation and less energy is needed.
Technical Indicators:
| N2 Capacity | 1-1000Nm3 / Hr |
| N2 Purity | 95% - 99.9995% |
| Compressed Air Pressure | ≤ 0.7MPa |
| Dew Point | 40 ℃ ~ - 60 ℃ |
| N2 Outlet Pressure | ≤ 0.6MPa |
Quality Standard:
Applying ISO9001 quality management standard to control the
manufactuer process. The products conform with the EU standard.
Applications:
- Food packaging (herbs, fresh pasta, ready meals, sandwiches,etc.
..)
- Bottling wine, water, vinegar, beverage;
- Fruit and vegetable storage and packing material;
- Steel processing industry;
- Medical industry;
- Chemistry;

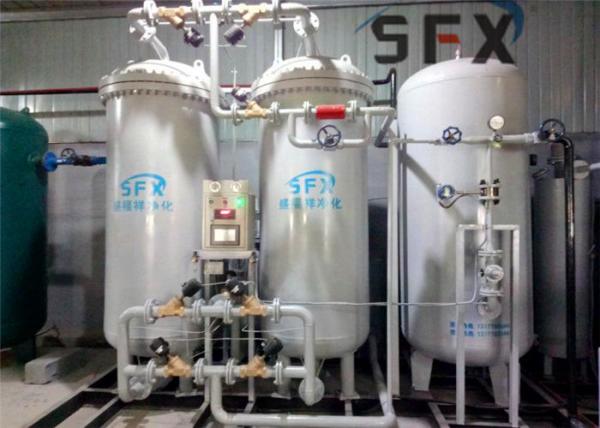

PSA Nitrogen Generator System is a reliable technology, the
equipment is widely used in food packing, food storing, electric and electronic industry,
petro-gas & oil field, chemicals and petro-chemicals, coal-mine,
power metallurgy, pharmacy, SMT, fire-resistance, lab, air diving,
and so on.
After Sales Service Commitment
Free warranty for the equipments during the promised period.
1. The main machine,1 year warranty.
2. Lifelong maintance service in a timely manner, the responding
time is less than 8 hours.
3.Provide 24-hour hotline service.
4.Return visit every six months.
5. Supply accessories in a timely manner, the delivery time is
generally 1-7 days.
